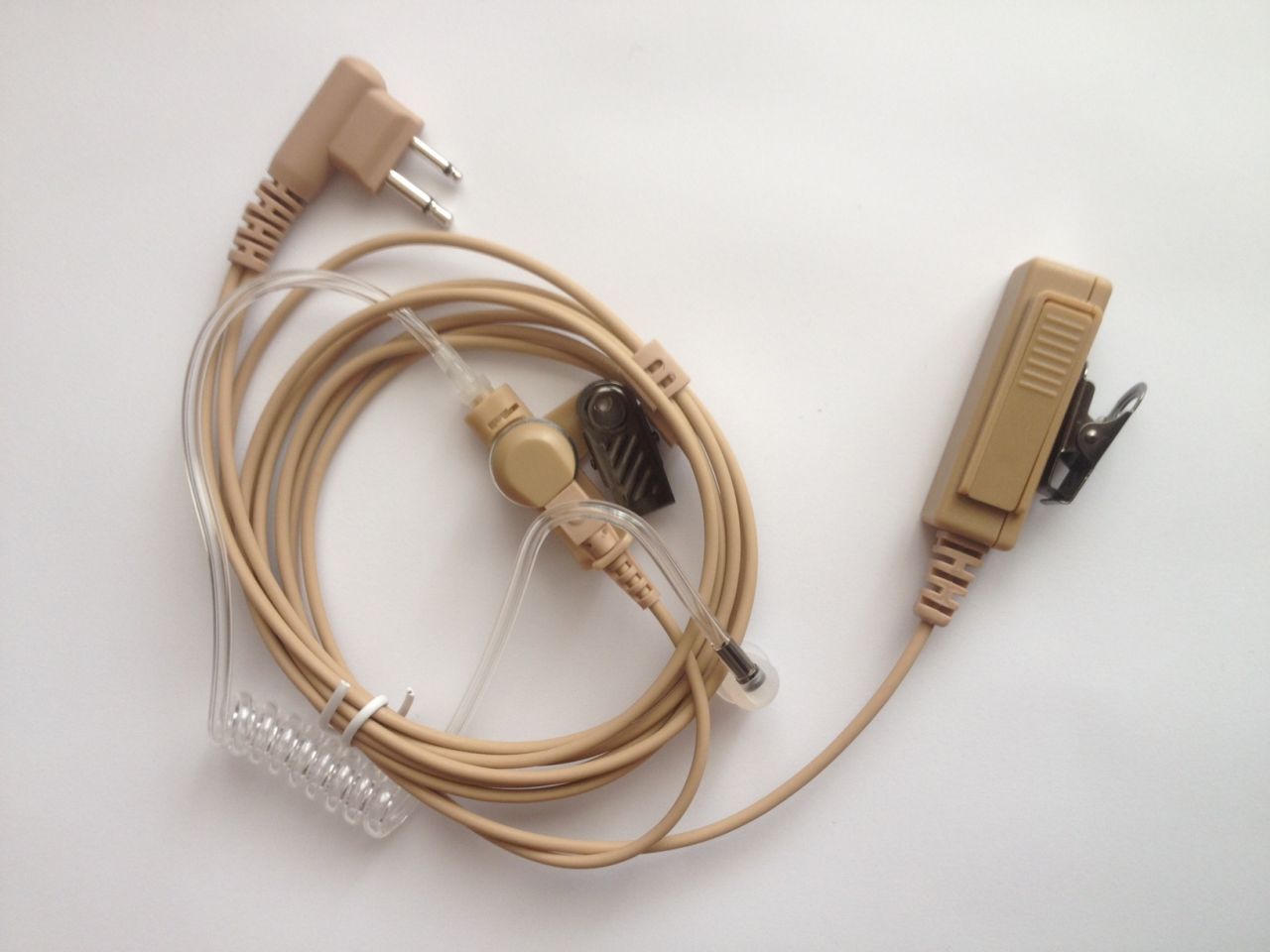

PTE 800N M01 Akustik Şeffaf Kulaklık Mikrofon Seti

Akustik Kulaklık Mikrofon Seti

Uyumlu Modeller

Motorola GP 300

Motorola CP 040

Motorola P040

Motorola XTNi

HYT TC 446

HYT TC 600

Motorola DP 1400

Product Specification/Models
Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 32Ω±15% @1KHZ
Sensitivity 113±3dB @1KHZ
Resonance freq (F0) 400HZ±20%
Frequency respond F0~9KHz
Rated input power 300mW
Maximum input power 500mW
Microphone Specification
Sensitivity Range -34 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 20-20KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L
